Description

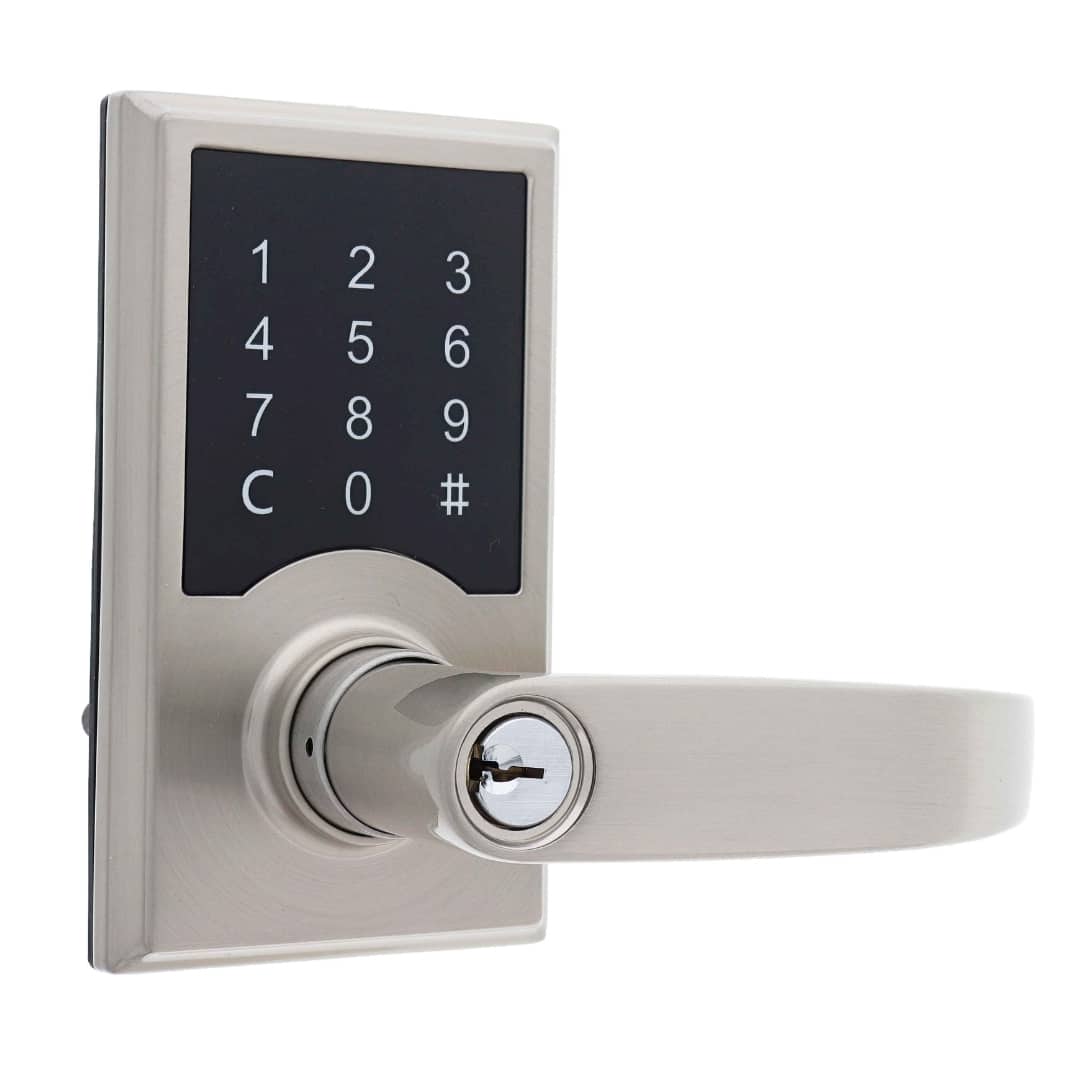

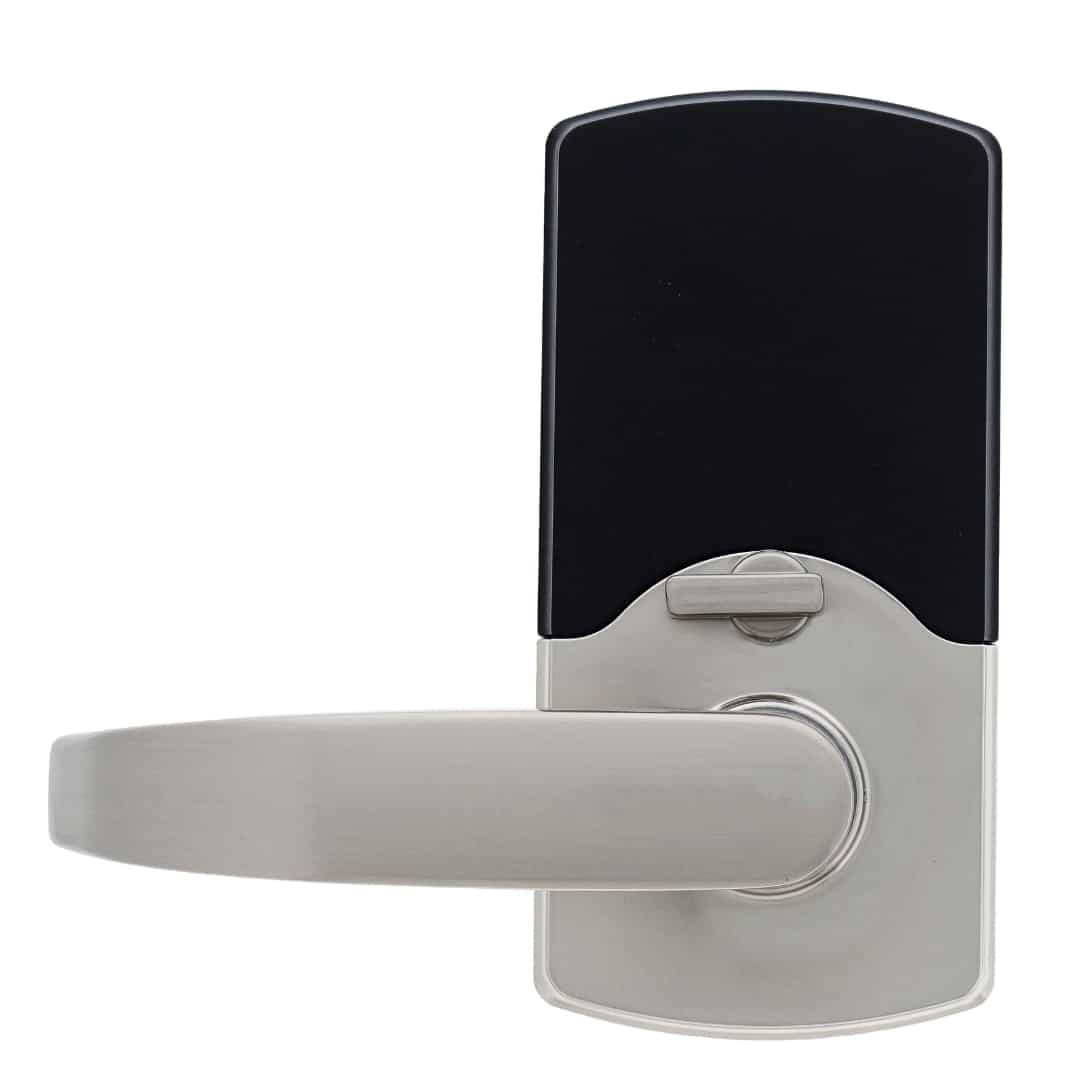

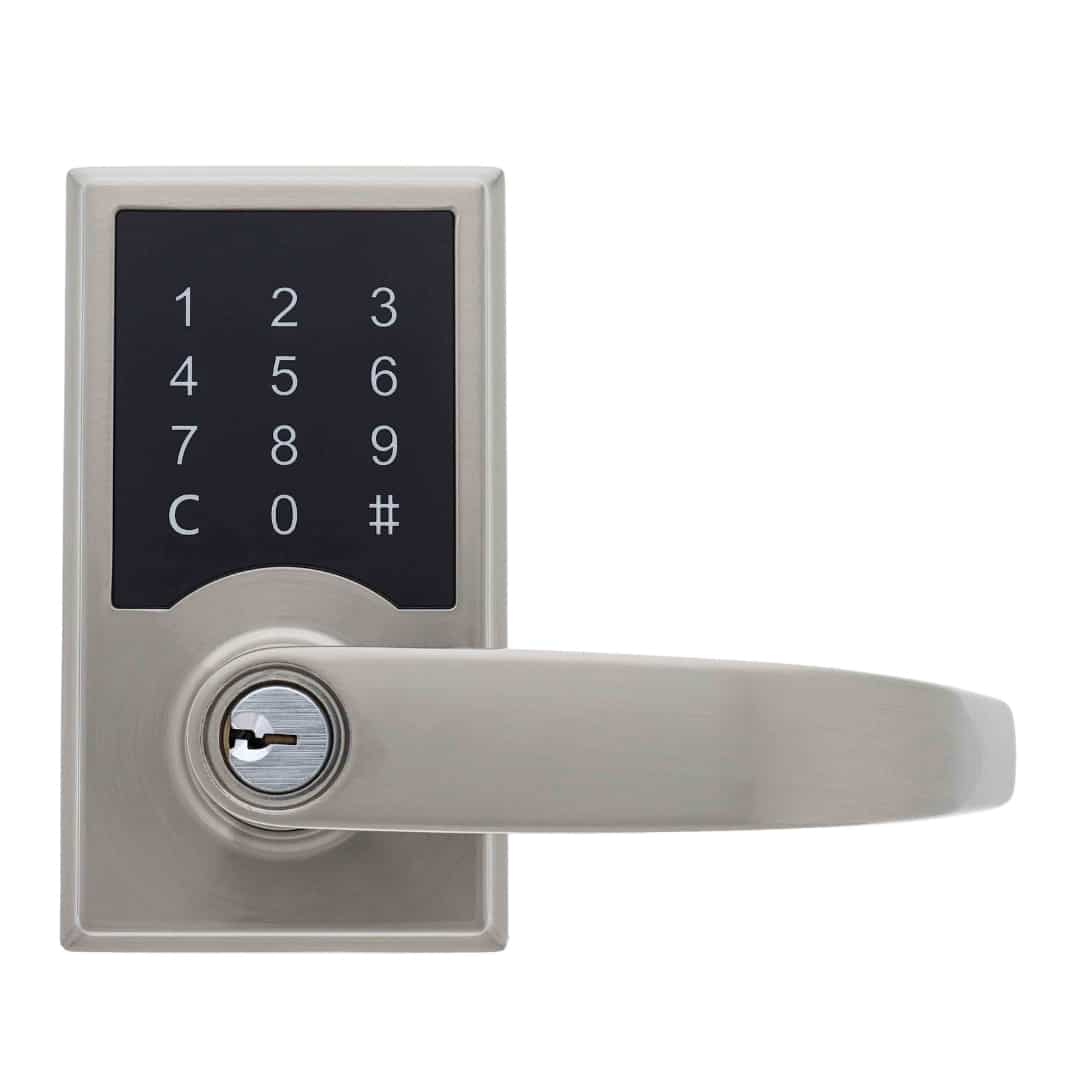

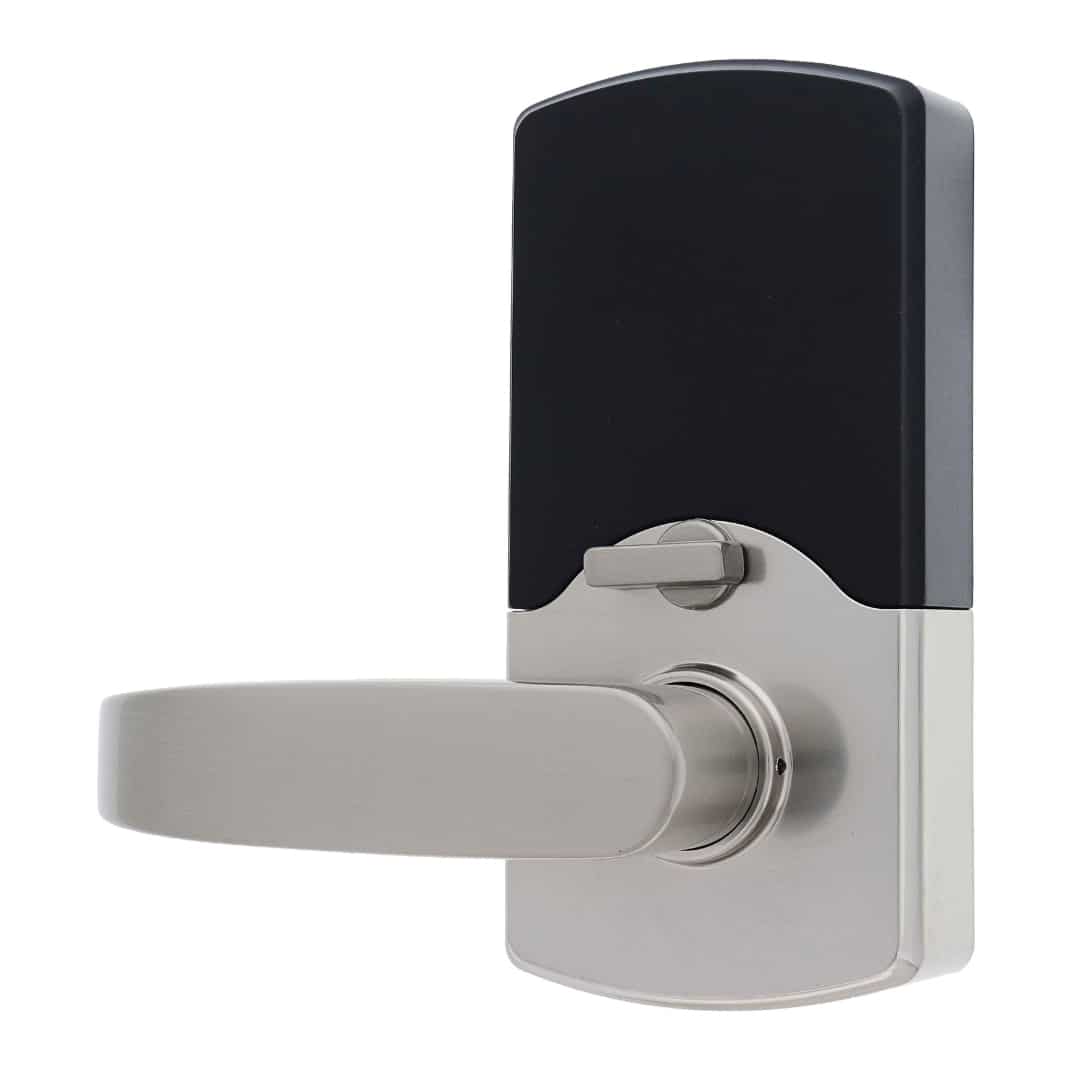

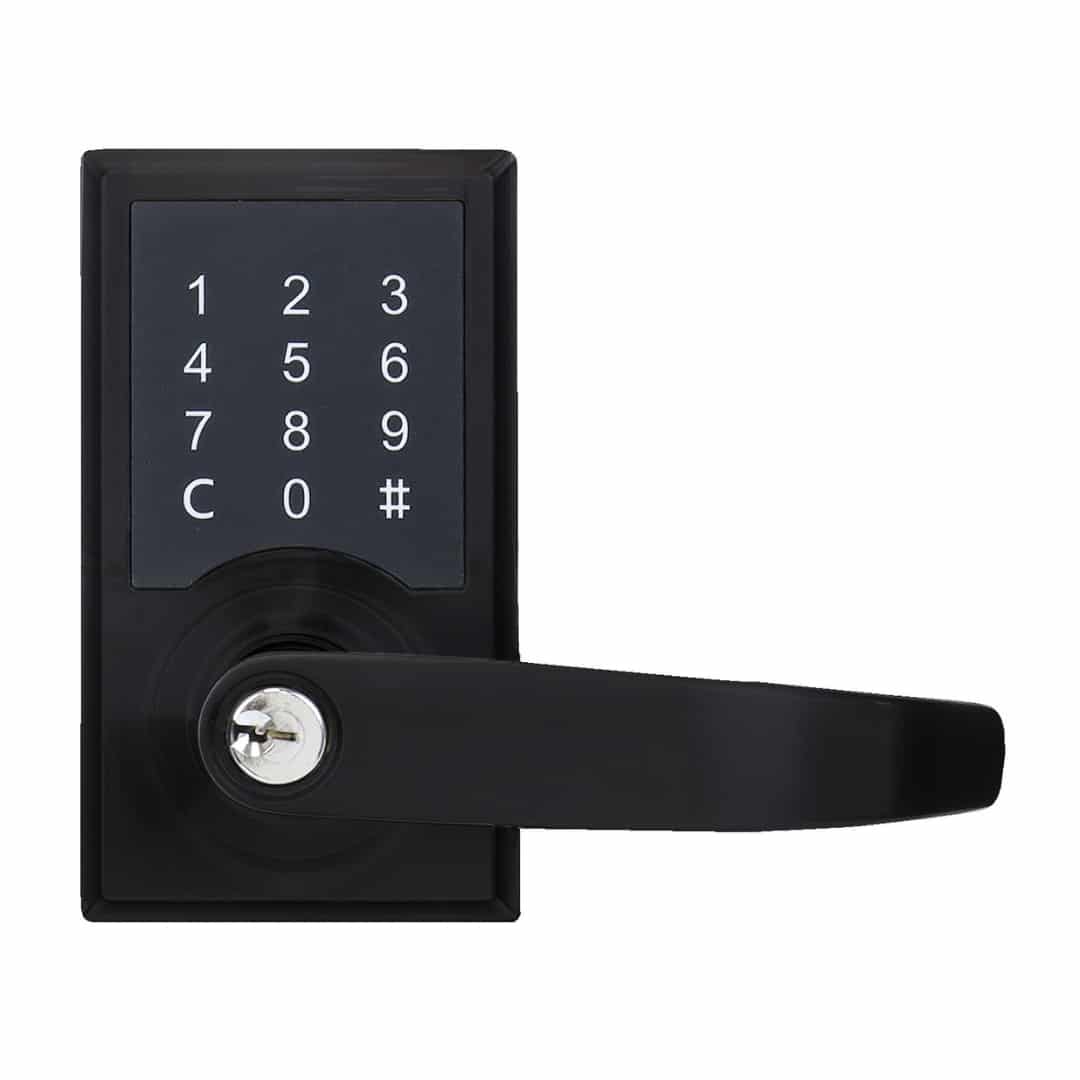

The Carbine CDL2 Electronic Digital Leverset provides a high-security, keyless access solution engineered for modern residential facades, corporate offices, and multi-user commercial spaces. Outfitted with an attractive, slimline membrane keypad that features a significantly smaller physical footprint than traditional digital code pads, this electronic entry set balances minimalist architectural aesthetics with exceptional mechanical resistance. Built to retrofit seamlessly over standard mechanical locksets, the CDL2 series entirely eliminates the operational overhead and risk of lost physical keys by facilitating standalone, user-programmable pin code access.
Engineered for reliable, long-term performance in variable environments, the CDL2 leverset features a heavy-duty design that has been cycle-tested to 250,000 openings and rigorously moisture and salt-spray tested for superior anti-corrosive longevity. With an ergonomic SL8-style lever arm that projects 65mm from the door face, an integrated physical key override, and compatibility with standard door face preparations, this electronic digital leverset delivers the uncompromised perimeter protection and keyless convenience required for high-performance commercial access control networks across Victoria.
Technical Specifications & Access Management
Keypad Access & Credential Parameters
- Keyless Pin Code Entry: Retracts the latchbolt via a secure, standalone digital passcode, providing rapid keyless access control without relying on external network wiring.
- Long-Lasting Membrane Keypad: Engineered with a heavy-duty tactile membrane layer designed to withstand continuous usage while concealing code wear indicators.
- 20 User Code Allocation: Supports the storage of up to 20 unique, fully independent user access pin codes programmed directly through the master keypad terminal.
- Power-Efficient Keypad Backlight: Outfitted with a bright digital backlight to ensure trouble-free operational visibility in low-light entryway environments.
Fitting Geometry & Retrofit Parameters
- Door Thickness Versatility: Natively scales to fit timber and metal open perimeters ranging smoothly from 32mm to 54mm thick.
- Adjustable Spring Latch: Packed complete with a high-performance, fully adjustable 60mm to 70mm backset latch mechanism.
- Latch Constraint Notice: Please note that the CDL2 internal chassis is strictly incompatible with extended 127mm latch configurations.
- Standard Face Preparation: Fits natively into standard 54mm lockset cross-bore face holes, allowing a clean retrofit installation over existing hardware footprints without auxiliary door drilling.
Cylinder Architecture & Power Allocation
- Inline Keyway Interfacing: Outfitted with an integrated physical override cylinder operating natively on the common Keyline LKW9 and Silca LW5 inline key profile configurations.
- Master Key Adaptability: The 6-pin mechanical cylinder assembly is fully rekeyable, permitting rapid inclusion into existing simple keyed-alike arrays or complex facility master key systems.
- Self-Contained Power Supply: Powered by 4 x AAA Procell high-capacity batteries (included inside the standard retail box package) to deliver a standalone functional lifespan rated for up to 5,000 independent openings.
