Carbine Commercial Deadbolt Double Sided

Description

The Carbine Advanced Locking Bolt (ALB) surface-mounted deadbolt mechanism delivers commercial-grade physical security. It is engineered to withstand high-impact forced entry tactics.Built on a heavy-duty mechanical foundation. The product is tested to rigorous ANSI Grade 2 international standards. Notably, the Carbine Commercial Deadbolt Double Sided design ensures a higher level of entryway protection for demanding applications.

Furthermore this robust housing provides uncompromised defense for residential perimeters and sensitive entry doors. Consequently, it establishes a reliable security upgrade path for property owners demanding maximum physical protection. Among double sided commercial deadbolt options, the Carbine is frequently preferred for critical entry points.

However, facility managers and residential builders must consider specific architectural limitations during the initial design phase. This heavy-duty double deadbolt offers superior resistance to locksmith picking techniques. Furthermore, its cast metal casing—a core attribute of Carbine  deadbolt setups—counters brute-force prying attacks.

Conversely, due to surface-mounted assembly it requires a flat structural surface on the door face and inside frame to latch. Therefore, it cannot be installed on narrow-stile aluminium frame glass paths or doors requiring a flush decorative finish. For these reasons, only doors with ample mounting space are suitable for the installation of a Carbine Commercial Double Sided Deadbolt lock.

Security Specifications of the Commercial Deadbolt

Cylinder Profiles and Keyway Configurations

• Cylinder Compatibility:. Masterfully designed for standard Silca LW5, LW4, C4 and Keyline LKW9 profile configurations. Facilitating a clean integration into existing restricted key systems typically used alongside double sided Carbine Commercial Deadbolt models.
• TES5 Specialised Variants:. A premium model variant is available featuring a specialized TES5 keyway cylinder. Thus ensuring complete mechanical compatibility with Gainsborough key networks found in certain Carbine commercial deadbolts with double sided operation.
• Rekeying Adaptability:. The entire dual-cylinder assembly is fully rekeyable.  Permitting rapid configurations for simple keying alike across multiple doors or complex master keying network architectures, including setups using Carbine Commercial Double Sided Deadbolt locks.

Dimensional Geometry and Cutouts

• Rose Dimensions:. Made with an option for rose width of 65mm without the rosette, increasing to 70mm when using the supplied architectural rosette for a clean profile match. This flexibility matches varied requirements for Carbine’s commercial grade double sided deadbolt installations.
• Adjustable Spatial Backset:. Features a robust, fully adjustable 60mm to 70mm bolt backset mechanism. This allows for a simple alignment processes during replacements on pre-existing cutouts, perfectly suiting the Carbine Commercial Deadbolt in double sided variants.
• Door Thickness Versatility:. Natively designed to fit standard doors with a thickness between 35mm and 45mm—standards expected for many Carbine double sided commercial deadbolts.
• Thick Door Adjustments:. For specialised installations on thicker commercial or external doors ranging between 45mm and 53mm, the two integrated spacing rings can be easily removed to ensure a clean, flush fit for any security application.
• Thinner Door Spacers:. Supplied with two dedicated spacing rings per lock package to effortlessly accommodate thinner door profiles without structural play, a feature unique to Carbine Commercial Deadbolt Double Sided configurations.

Architectural Material Finishes

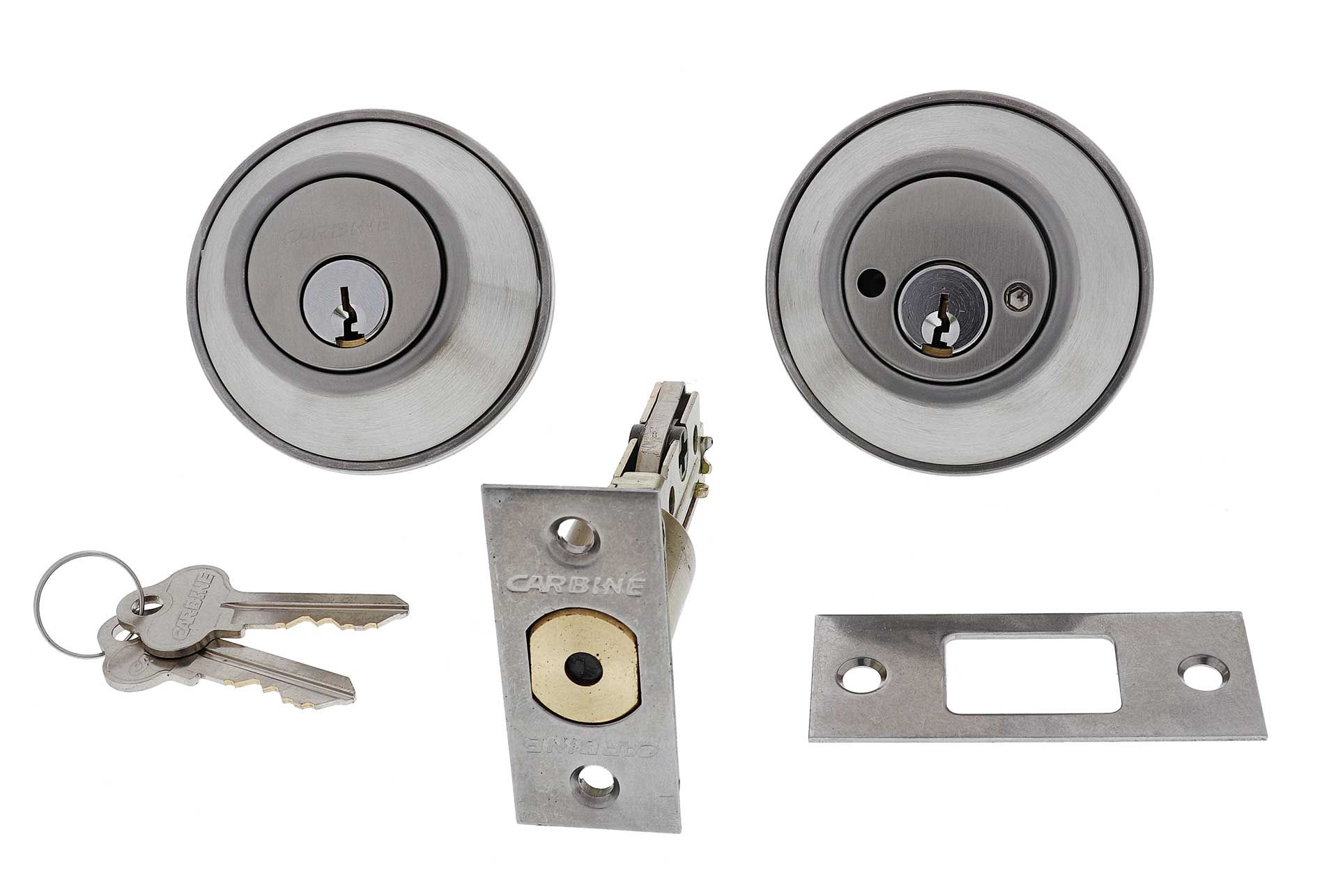

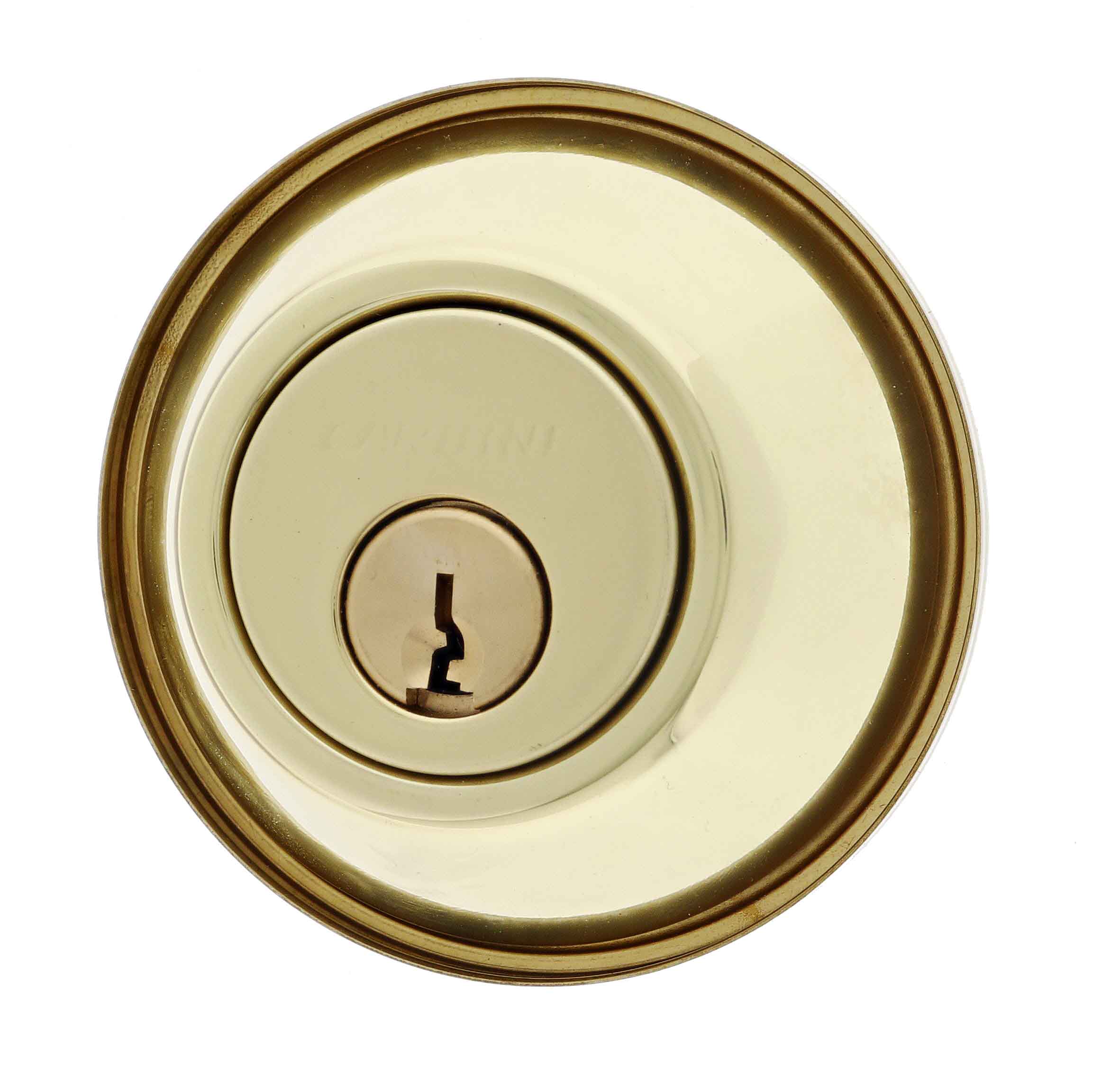

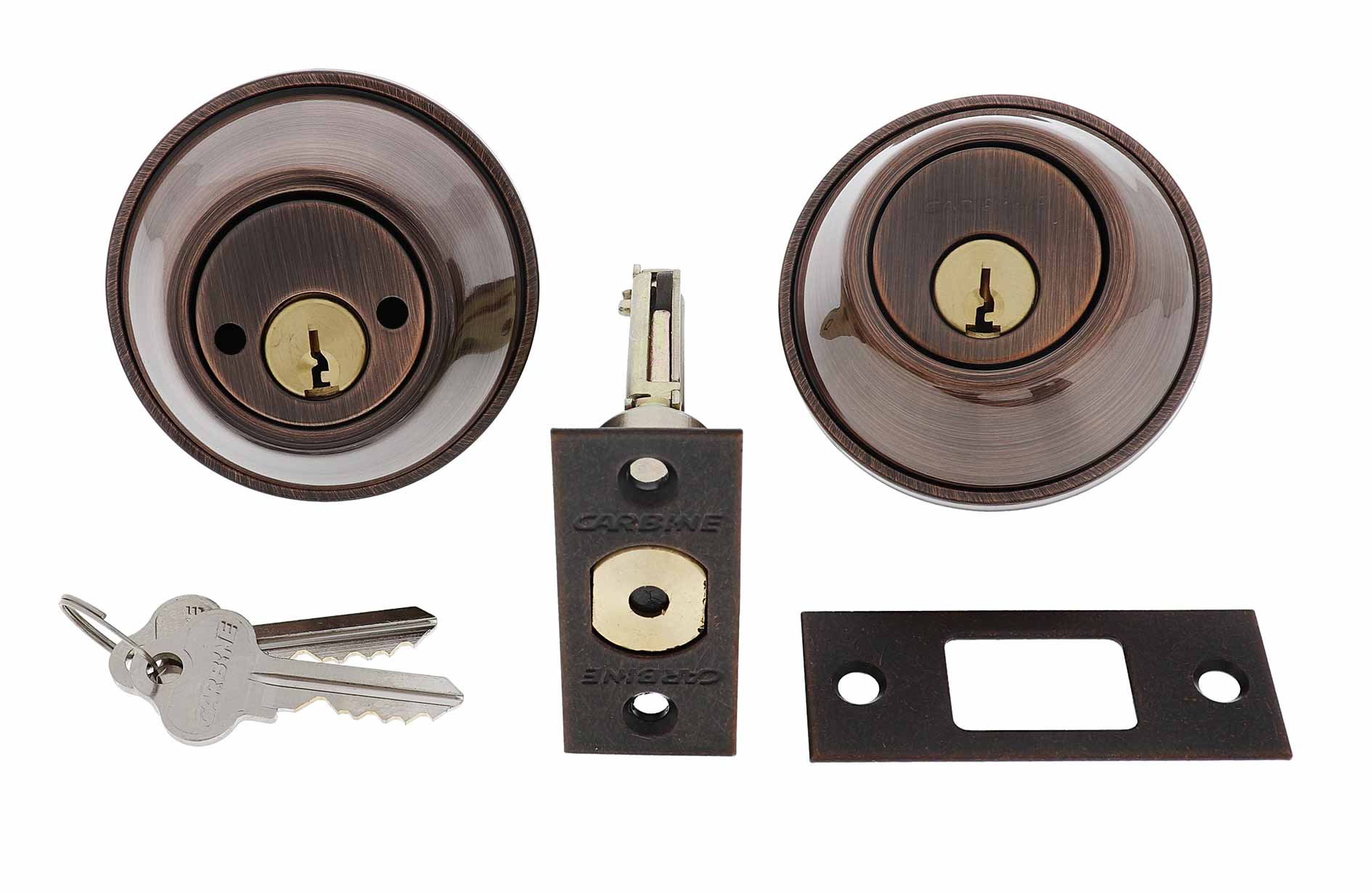

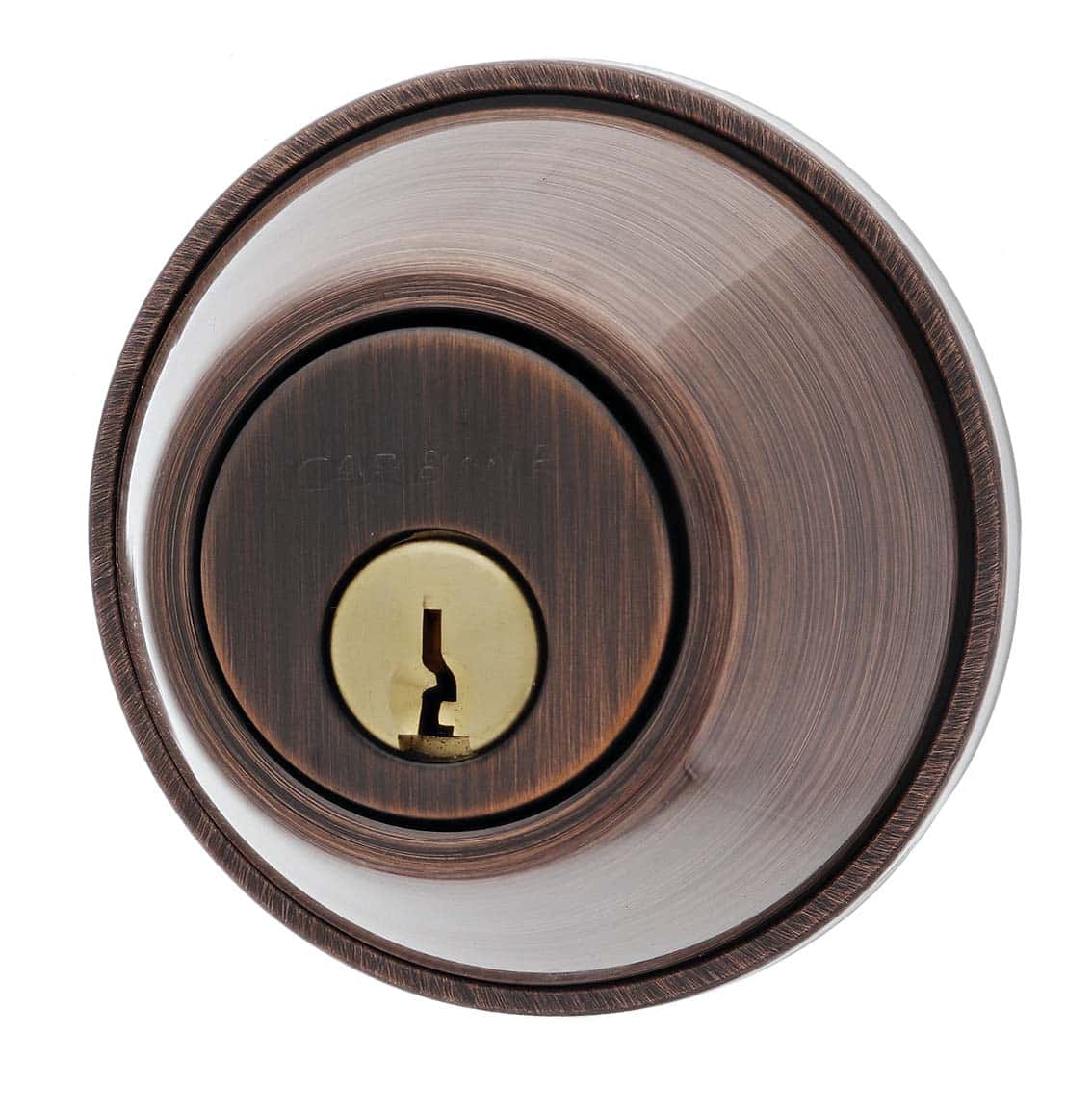

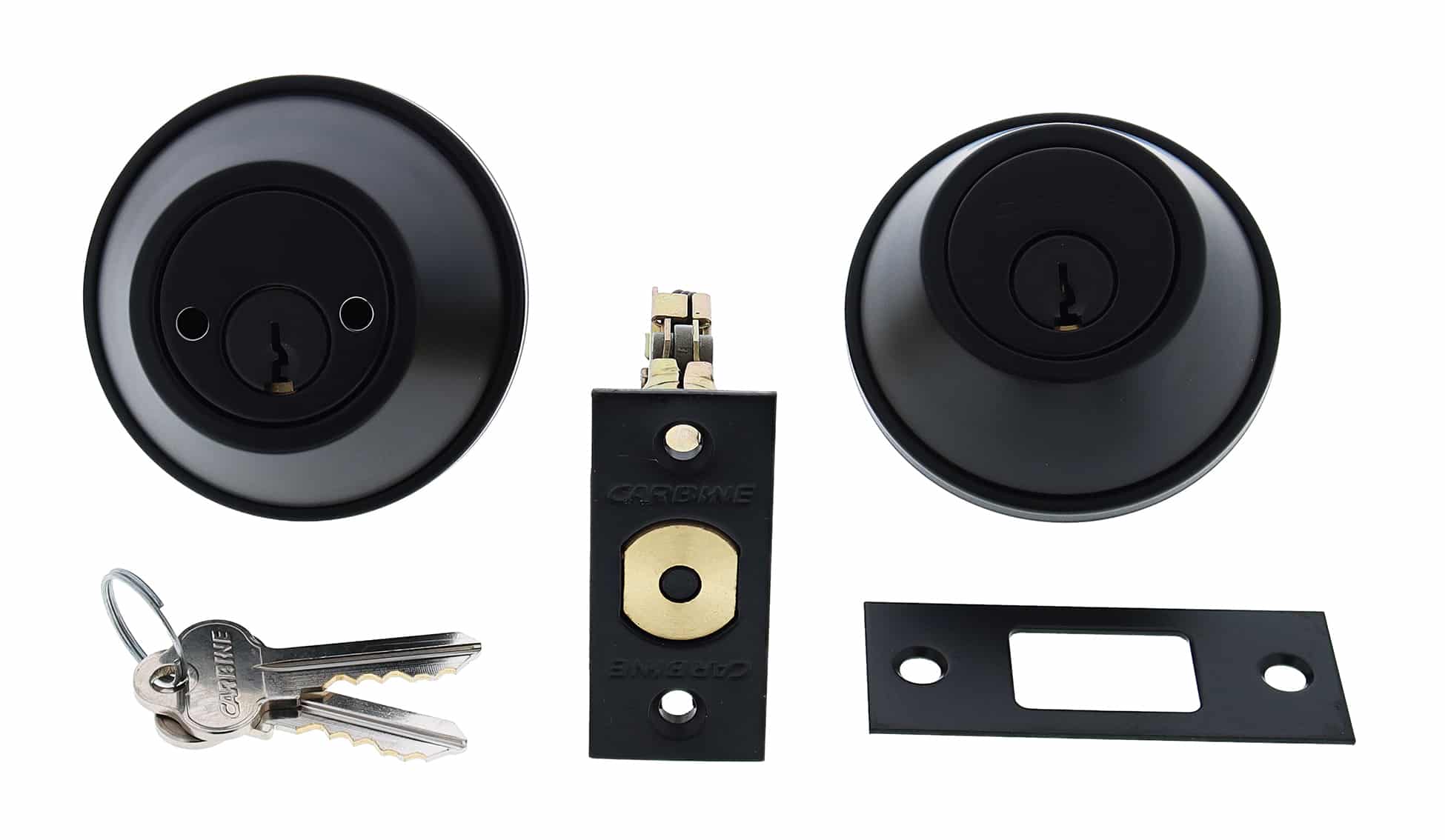

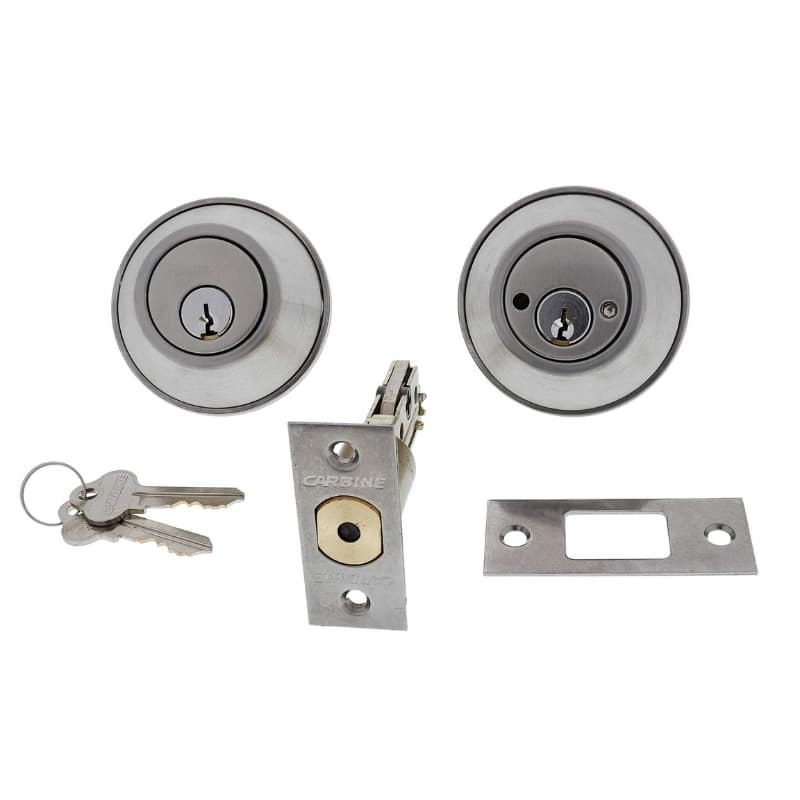

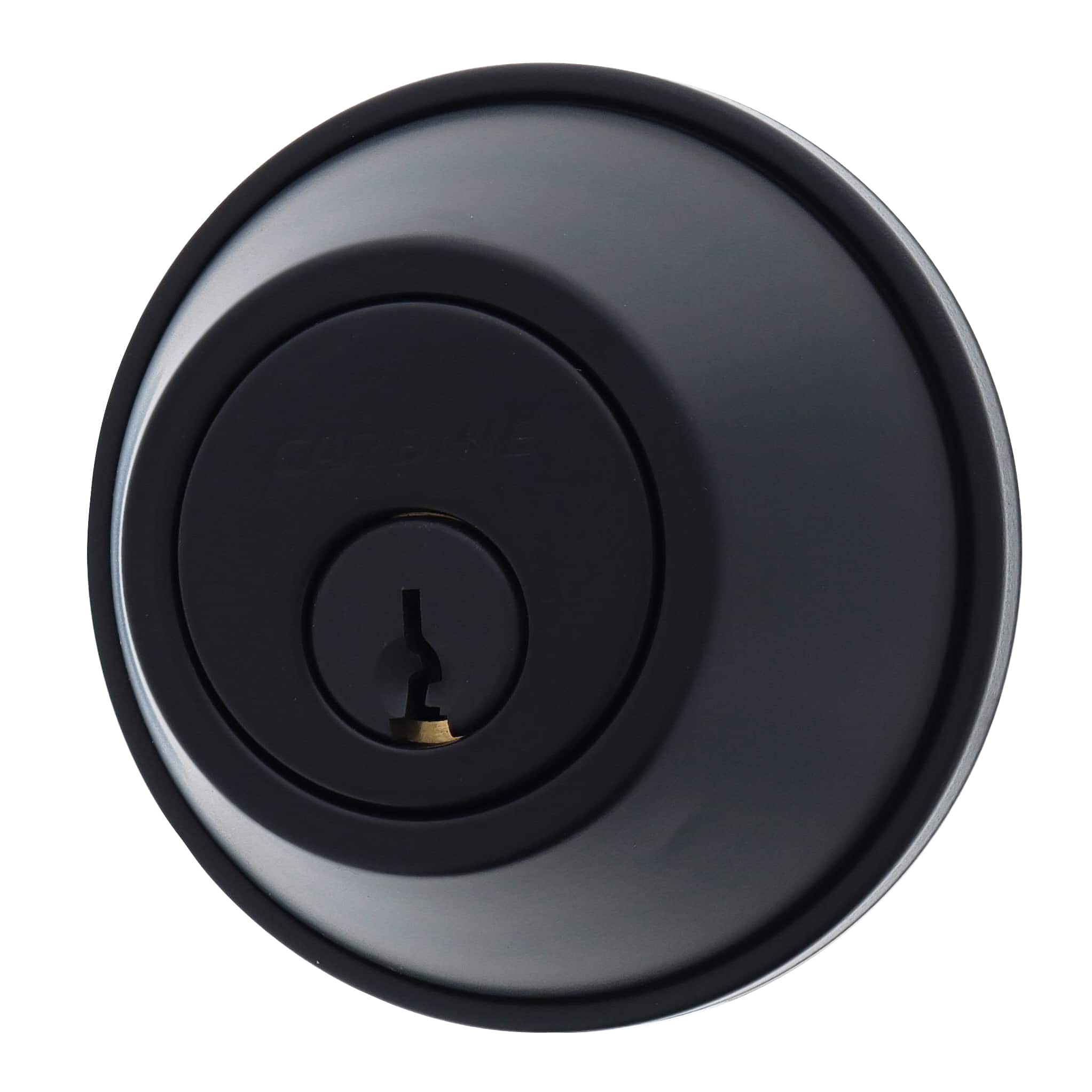

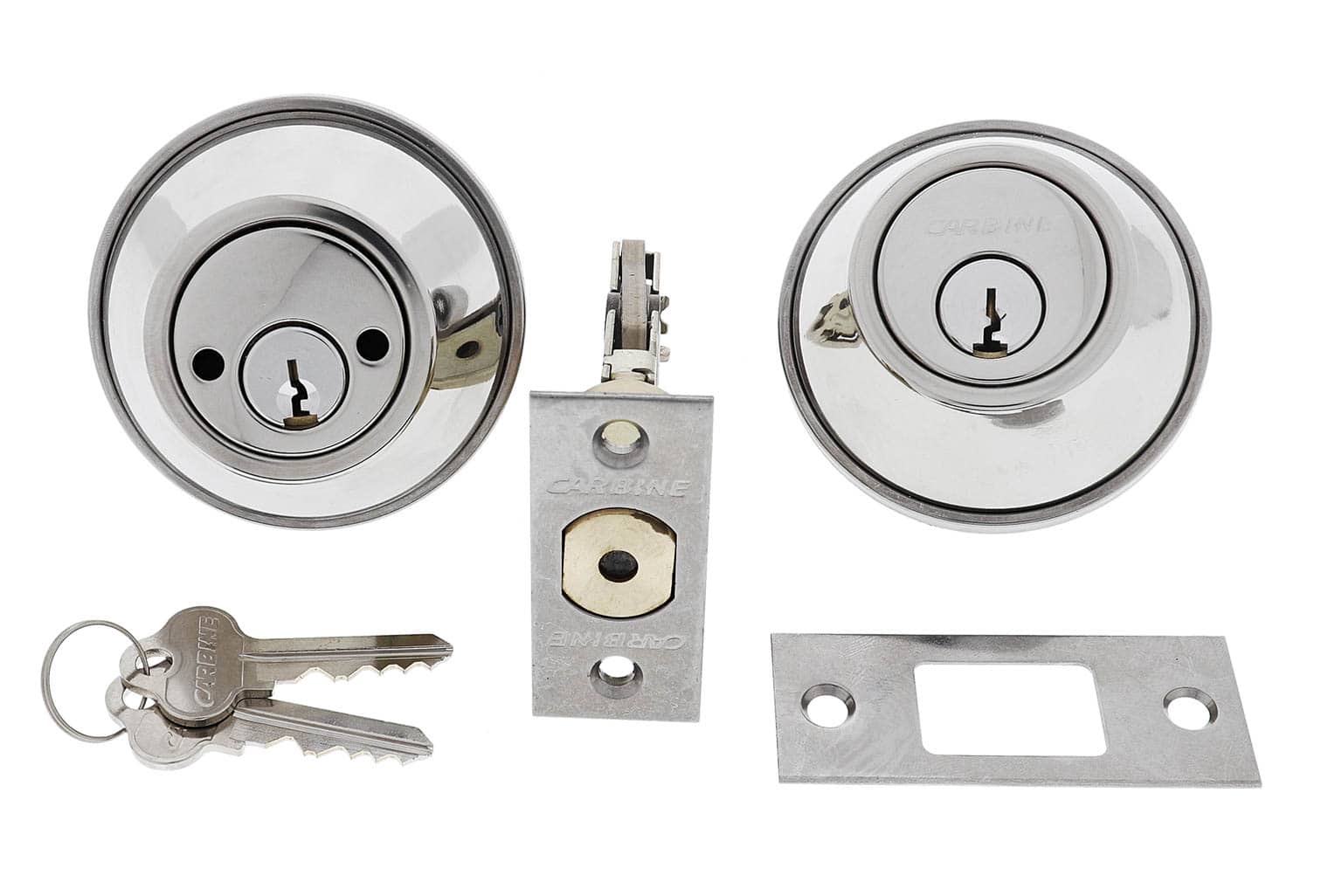

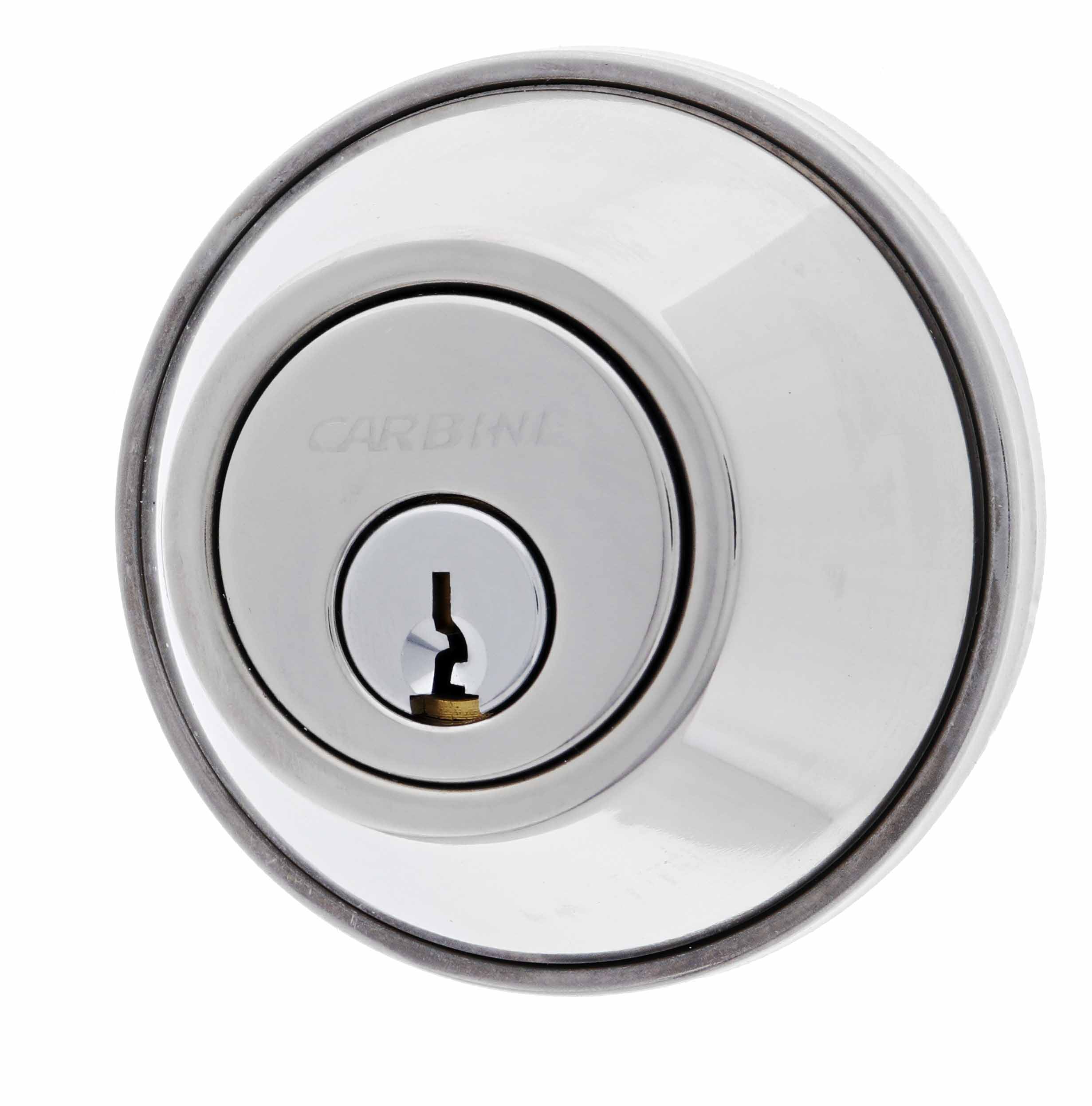

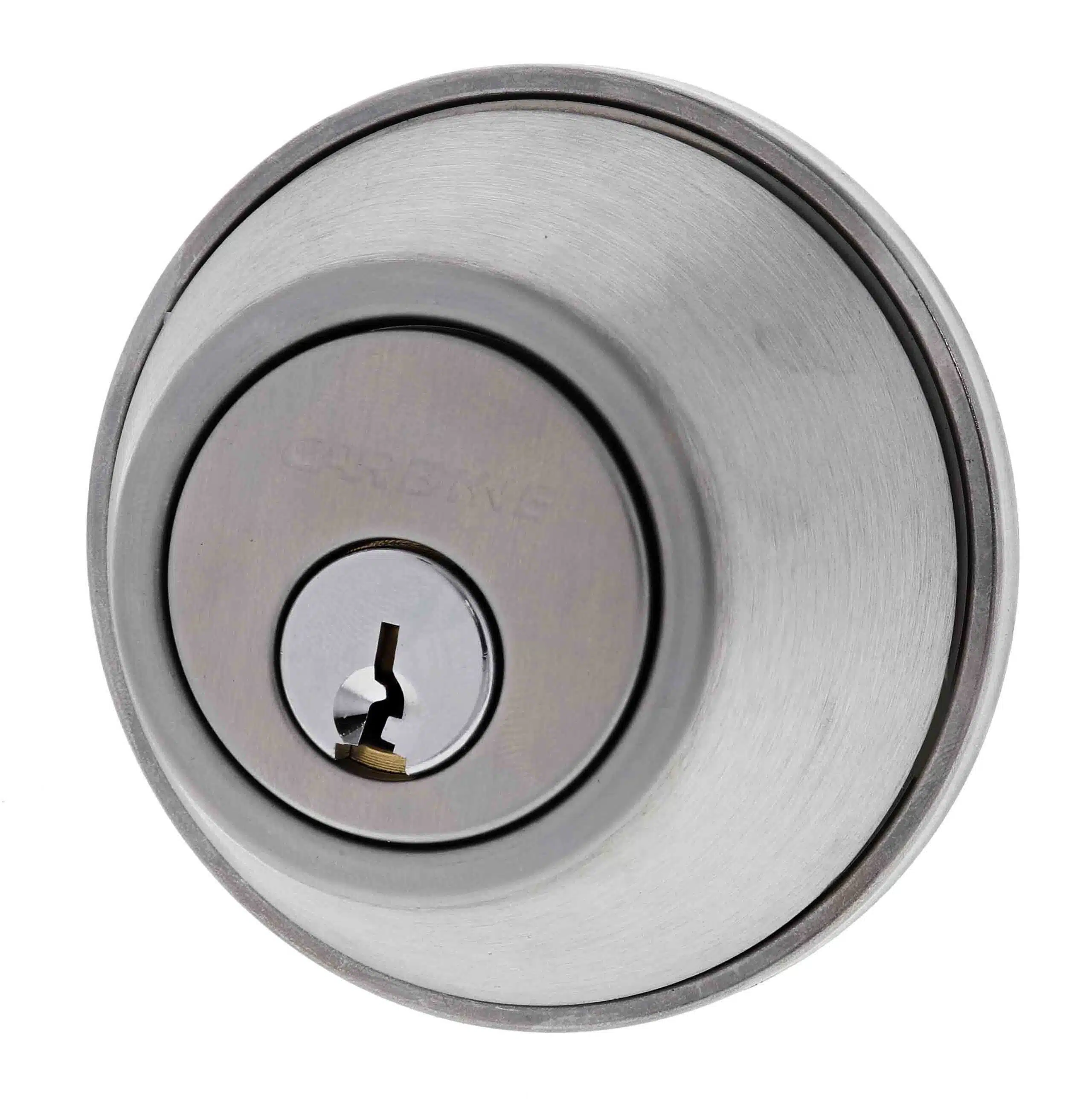

• Finish Selection: This product line features a single page option layout accommodating five premium architectural finishes to match contemporary or heritage design styles. Available choices include Stainless Steel, Chrome Plate, Matte Black, Polished Brass, and Antique Bronze. These finishes allow for aesthetic customization on for any security needs.

Installation Requirements for a Double Deadbolt

Achieving precise mechanical alignment between the locking casing and the frame receiver strike is critical. This is necessary to maintain the integrity of the ANSI Grade 2 rating. Improper placement or door sagging can put undue friction on the bolt mechanism. When installing, always review both the Carbine Commercial instructions and recommendations for double sided models to avoid any issues.

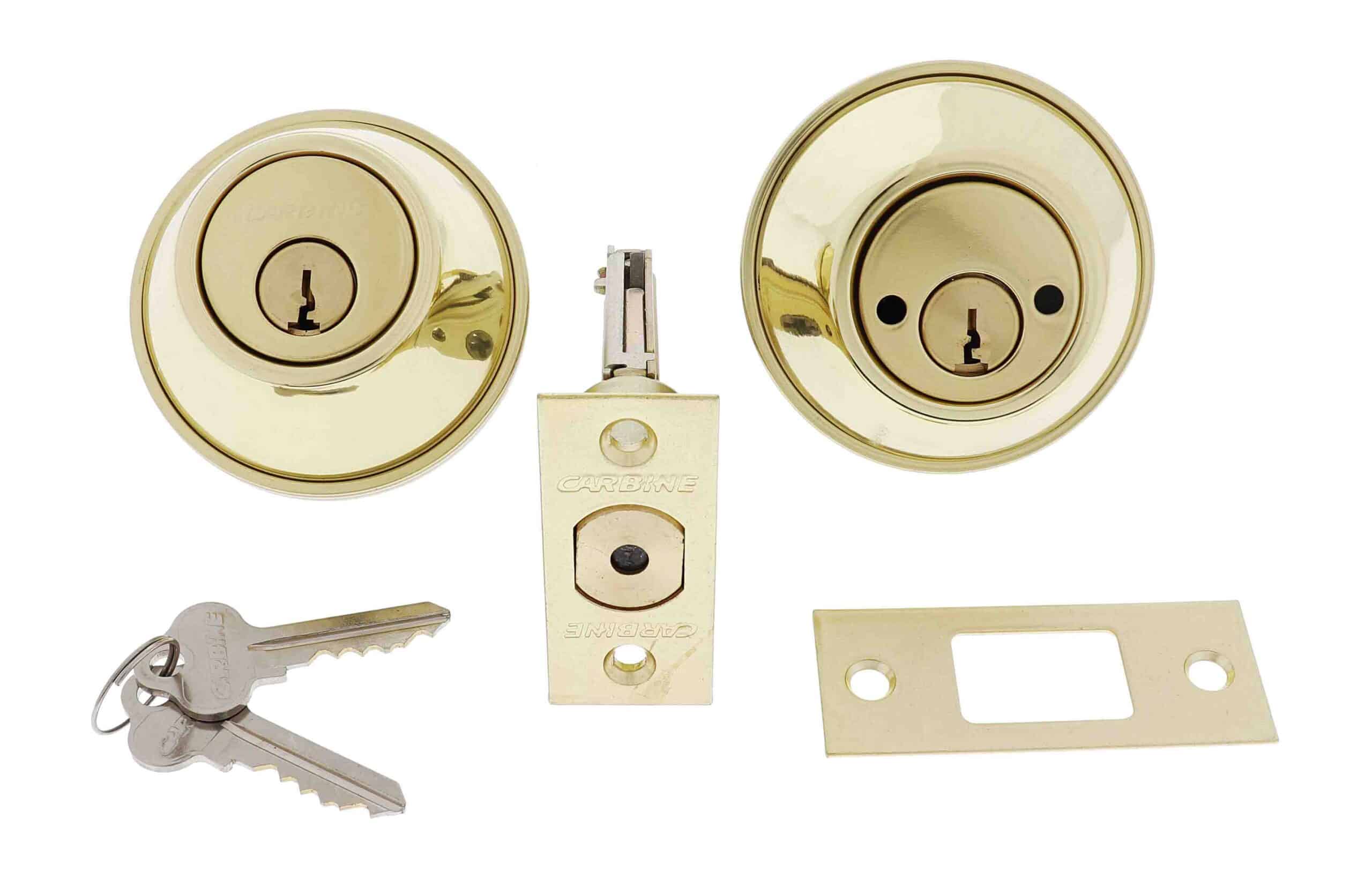

As a result, it can worsen wear on the cylinder pins. Please note that the retail package includes self installation blueprints. In addition, it also has screw a template. This helps any home DIY user have the confidence to install their own Carbine Commercial Deadbolt. The double sided variants are especially popular for high-security uses.
