Carbine Longreach Passage Lever Plate Kit Stainless Steel (CSM72-18P-19P-SS)
$318.00 Inc. GST

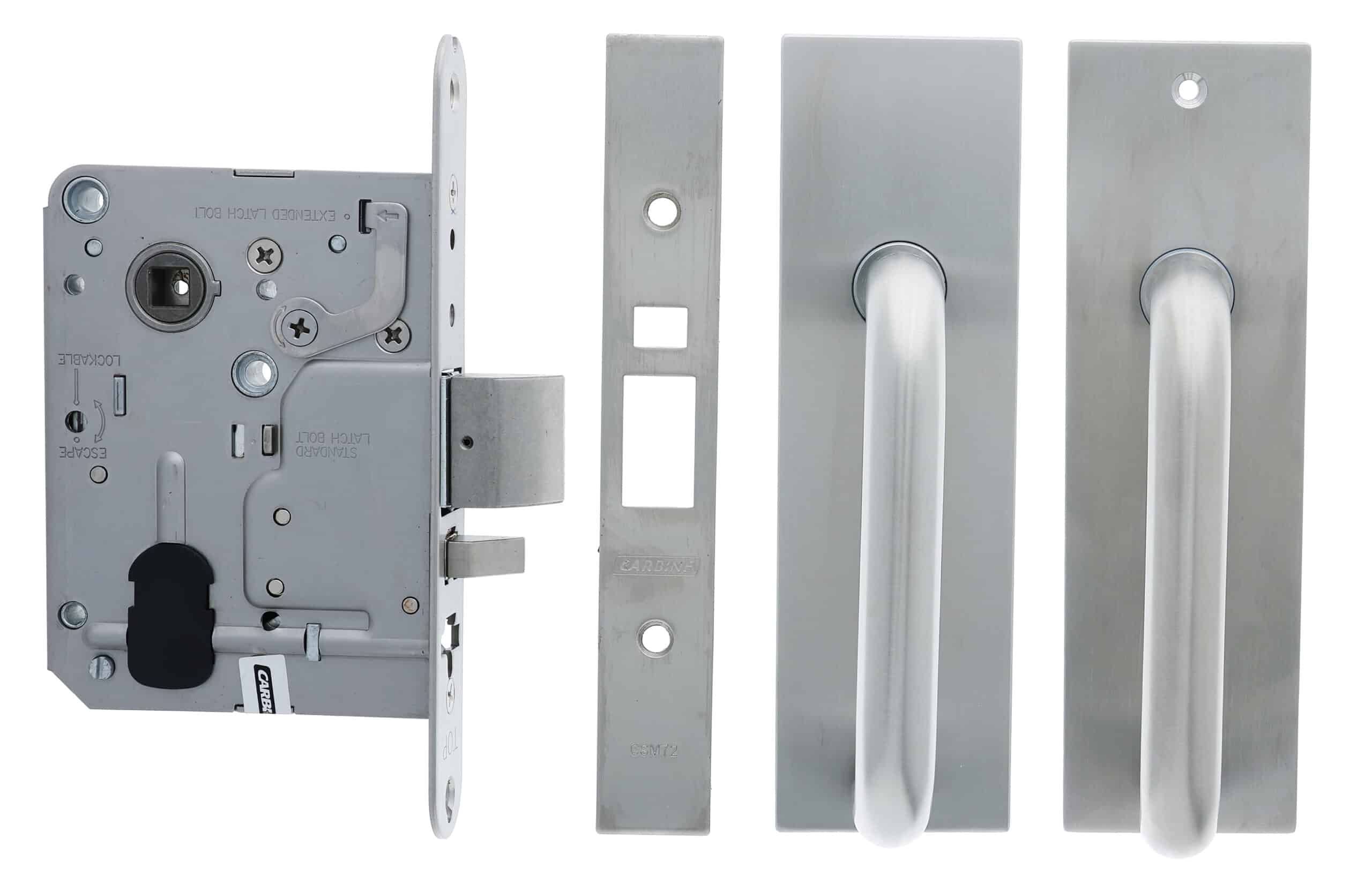

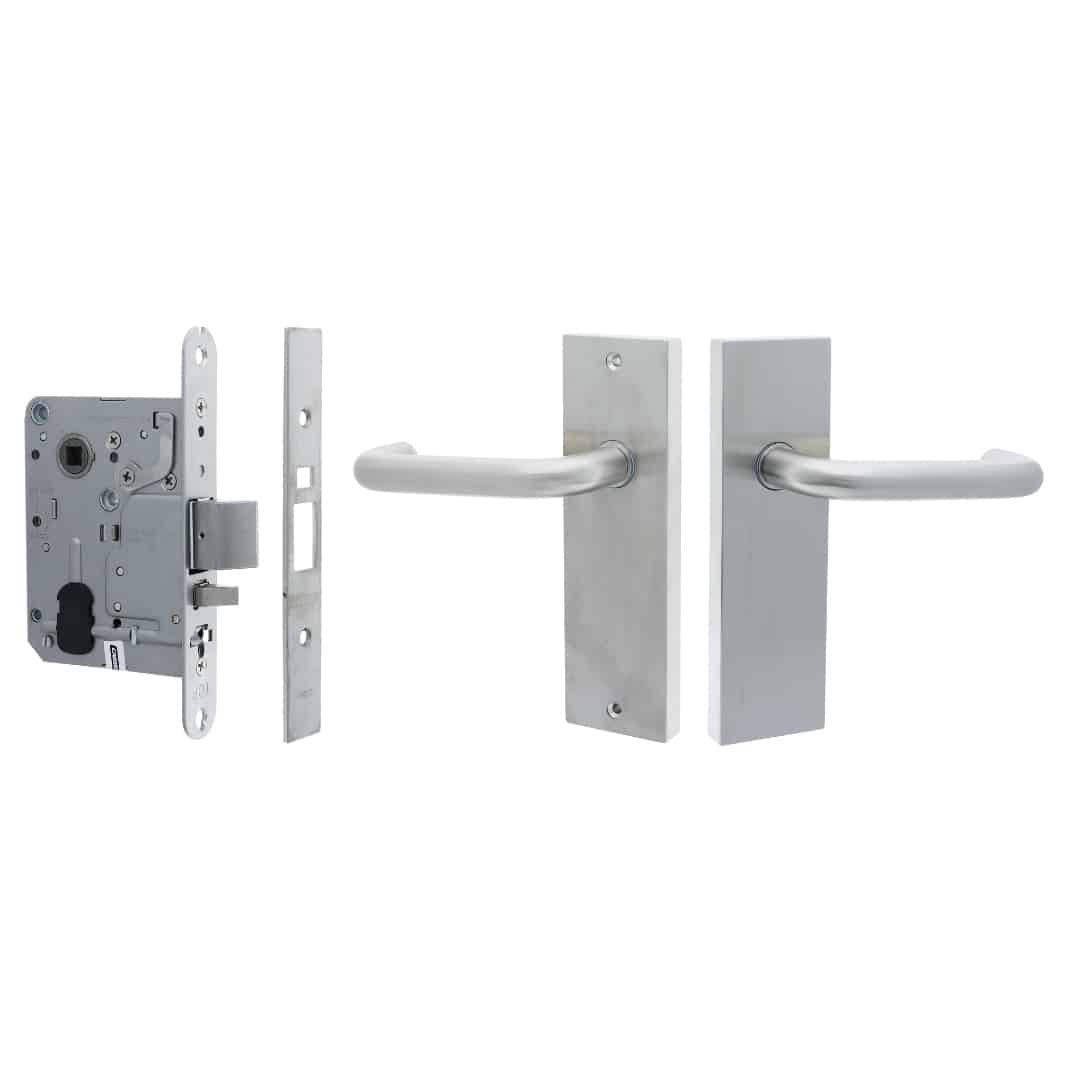

The Carbine Longreach passage plate kit (CSM72-18P-19P-SS) combines the CSM72 60mm commercial mortice lock with external and internal 316 stainless steel plain lever rectangular plates.
- Non-Locking Commercial Passage Set: Free-turning AS1428.1 #7 levers on both sides for high-traffic corridors and fire doors.
- Complete Mortice & Plate Kit: Includes CSM72-LS-SS 60mm mortice lock, CSF18-P-7SS external plate, and CSF19-P-7SS internal plate.
- 316 Marine Grade & 4-Hr Fire Rated: Tested to 1,000,000 cycles (D8) with 148mm fixing centres and 19.5mm longreach latchbolt.
- Stocked Victorian Warehouse Dispatch: In stock in Victoria for 24-48hr dispatch with free Australia-wide shipping over $149.95 AUD.
The Carbine Longreach passage plate kit (SKU: CSM72-18P-19P-SS) is a complete non-locking commercial mortice passage set pairing the Carbine Longreach CSM72-LS-SS 60mm mortice lock with solid 316 marine-grade stainless steel Serens plain rectangular lever plates. Manufactured by Carbine, this csm72-18p-19p-ss passage mortice kit is built for commercial corridors, stairwells, and fire-rated passage doors.
Carbine Longreach Passage Plate Kit 4-Hour Fire Rating and 316 Stainless Build
Fire-rated commercial corridor doors require positive mortice latching without key cylinders or snibs that could impede passage. This commercial passage mortice plate kit provides 45-degree lever action and a selectable 15mm or 19.5mm latchbolt throw.
- Complete 3-Piece Kit: CSM72-LS-SS 60mm mortice lock body + CSF18-P-7SS external plain lever plate + CSF19-P-7SS internal plain lever plate (no cylinders required).
- AS1428.1 & 4-Hour Fire Rated: Compliant #7 levers and 316 marine-grade stainless steel plates.
Stocked Victorian Warehouse Dispatch and On-Site Installation
Browse our full range of commercial mortice locks or book licensed mobile installation across Metropolitan Melbourne and Regional Victoria via All Secure Locksmiths.
- 24-48hr Victorian Dispatch: Shipped within 24 to 48 hours from our stocked Victorian warehouse with free Australia-wide delivery over $149.95 AUD ($9.95 AUD flat rate under $149.95 AUD) and 30-day returns (Postal Returns: P.O. Box 2101, Oak Park, VIC 3046).
Frequently Asked Questions
Does the CSM72-18P-19P-SS passage kit require any cylinders or adaptors?
No. Because it is a non-locking passage set with plain lever plates on both sides, it is 100% complete in the box.
Is it approved for 4-hour commercial fire doors?
Yes. Both the CSM72 lock body and 316 stainless steel Serens plates are 4-hour fire rated.
Additional Information & Specifications
| Weight | 2.2 kg |
|---|---|
| Dimensions | 24 × 18 × 10 cm |
| Brand | Carbine |
| Lock Type | Commercial Non-Locking Passage Mortice Lock & Rectangular Plate Kit |
| Model Code | CSM72-18P-19P-SS |
| Kit Inclusions | CSM72-LS-SS 60mm Mortice Lock + CSF18-P-7SS Ext Plate + CSF19-P-7SS Int Plate |
| Compliance | AS1428.1 DDA Compliant / 4-Hour Fire Rated / AS 4145.2 D8 |
| Material | 316 Marine Grade Satin Stainless Steel (SS) |
