Description

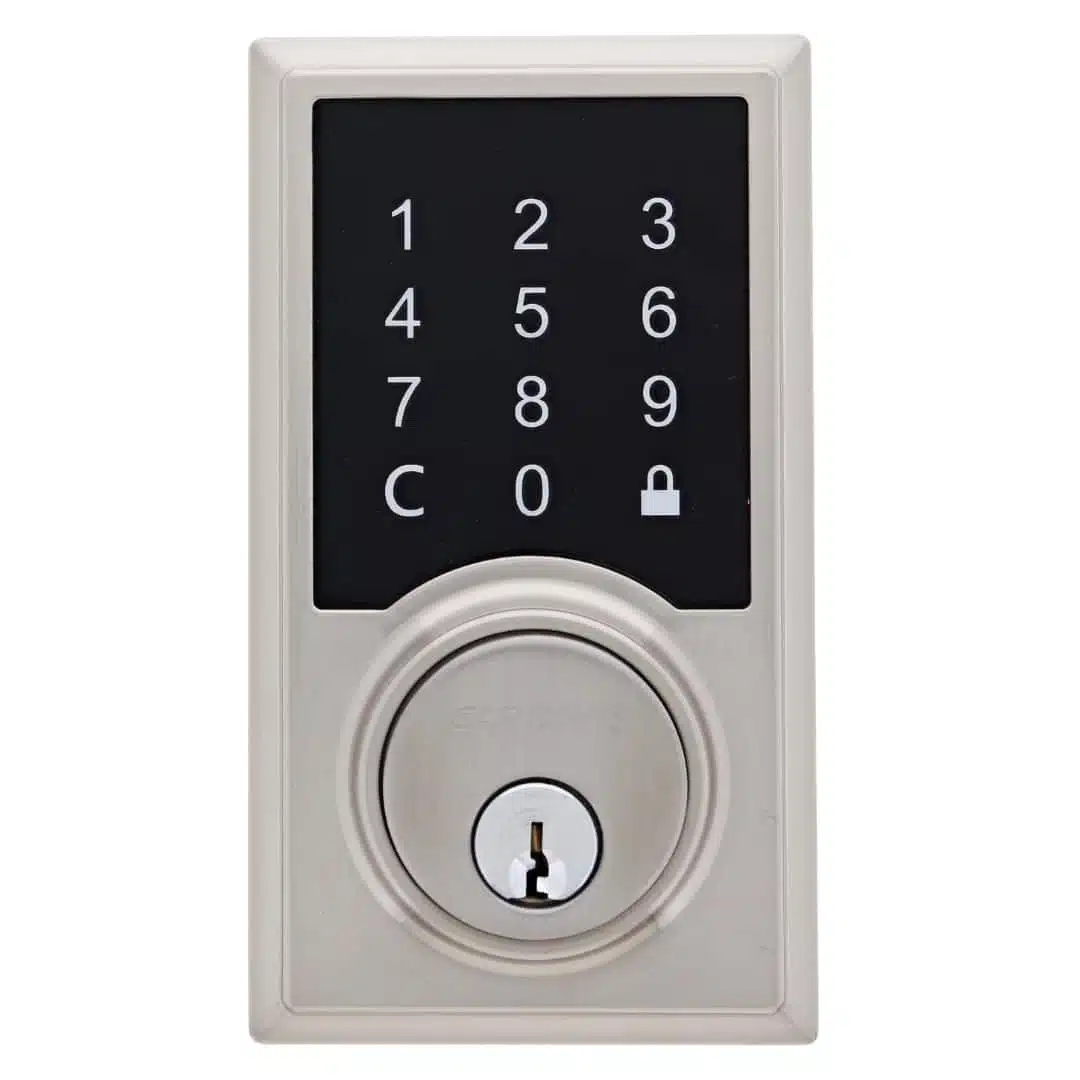

The Carbine CDL2 Standalone Electronic Digital Deadbolt series delivers reliable keyless access control and low-profile physical security. Furthermore, it achieves modern aesthetic integration for residential entries, investment properties, and short-stay holiday rentals. It is constructed with an attractive slimline digital keypad. This keypad maintains a compact footprint compared to bulky conventional code pads.
Moreover, this deadbolt completely eliminates the risk of lost physical keys or ongoing property rekeying overheads. As a result, it acts as an exceptional security upgrade for landlords, homeowners, and building operators. This is ideal for those aiming to standardise keyless security across timber or metal entrance doors.
Engineered to operate dependably in variable conditions, the lock is cycle-tested to 100,000 openings. Additionally, it is rigorously moisture and salt-spray tested to resist environmental corrosion over prolonged outdoor exposure. The keyless terminal supports up to 10 separate user pin codes programmed directly through the lock face.
It utilises a long-lasting, weather-resistant membrane keypad. Furthermore, it is outfitted with an integrated physical cylinder for mechanical fallback. Carefully engineered to retrofit effortlessly over standard lockset preparations. Thanks to these features, this standalone digital deadbolt range satisfies contemporary requirements for clean architectural facade security.
Technical Engineering & Access Control
Keyless Credential & Passcode Management
- Keyless Pin Code Access: Retracts the deadbolt securely via a simple, user-friendly electronic keypad interface.
- 10 User Code Allocation: Supports the storage of up to 10 unique, fully independent user access pin codes programmed directly through the device keypad.
- Long-Lasting Membrane Keypad: Outfitted with a durable tactile membrane built to handle continuous daily access while hiding button wear paths.
- Variable Pin Lengths: Digital passcodes can be flexibly configured from 4 to 8 digits in length to match your property’s safety requirements.
Fitting Geometry & Retrofit Architecture
- Standard Face Preparation: Fits natively into standard 54mm lockset cross-bore face holes, allowing a clean retrofit installation over existing hardware footprints without auxiliary door drilling.
- Supported Door Thickness: Natively scales to accommodate timber and metal door open perimeters ranging between 35mm and 51mm thick.
- Adjustable Deadbolt Backset: Supplied complete with a fully adjustable 60mm to 70mm deadbolt mechanism (please note this specialized deadbolt chassis is not suitable for use with 127mm latches).
Keyway Integration & Power Allocation
- Physical Key Override: Equipped with an integrated mechanical key override cylinder for direct backup entry during critical battery drainage events.
- Standard Cylinder Profile: Features a common LKW5 (Silca LW4 keyway) inline cylinder layout to support simple physical backup integration.
- Keyway Code Limitation: Please note this specialized electronic deadbolt body cannot be converted to restricted key profiles or alternative Gainsborough TES5 keyways.
- Enclosed Power Supply: Operated by 4 x AA Procell high-capacity alkaline batteries (included inside the standard retail package), rendering a standalone functional lifespan rated for up to 5,000 independent openings.
Range Variant Matrix

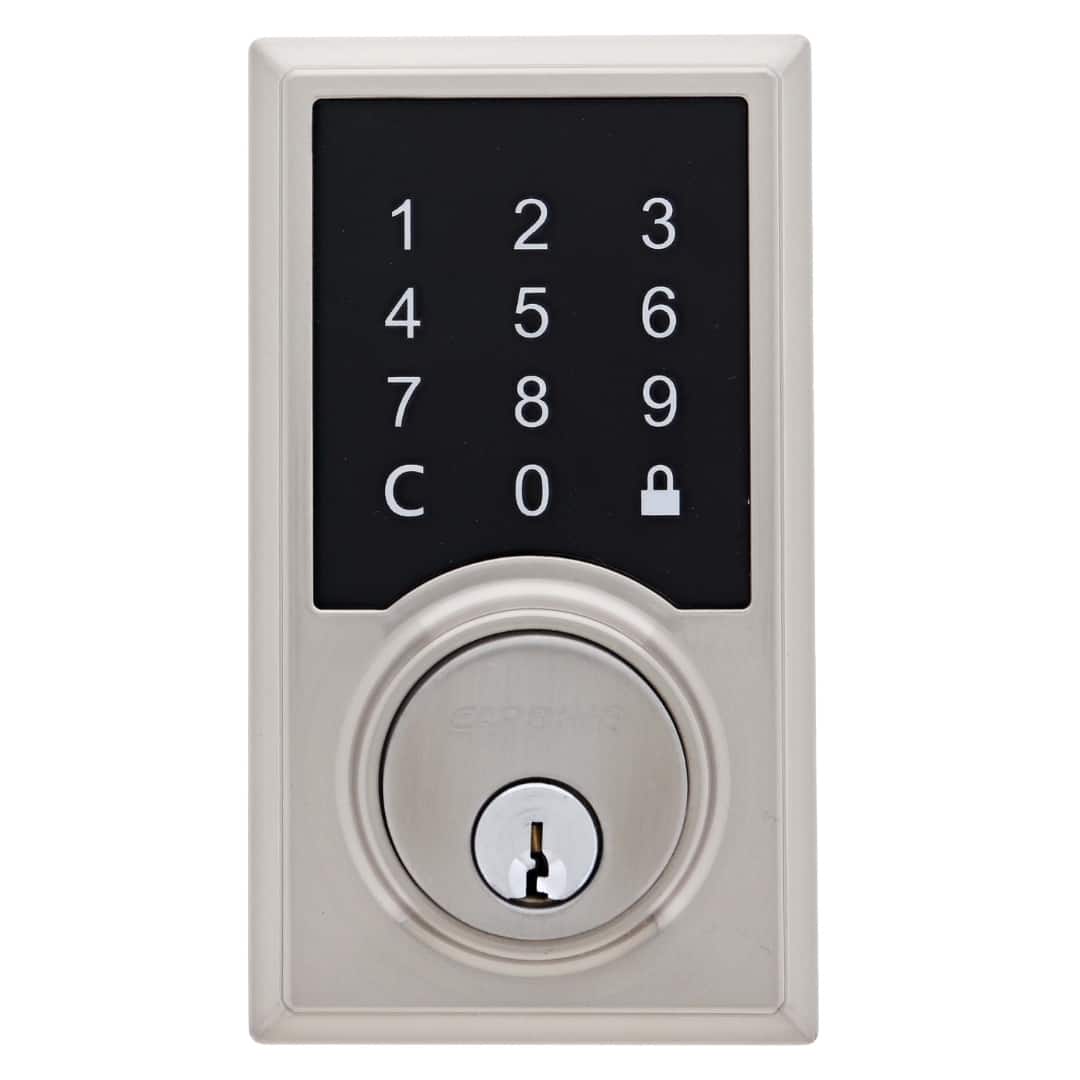

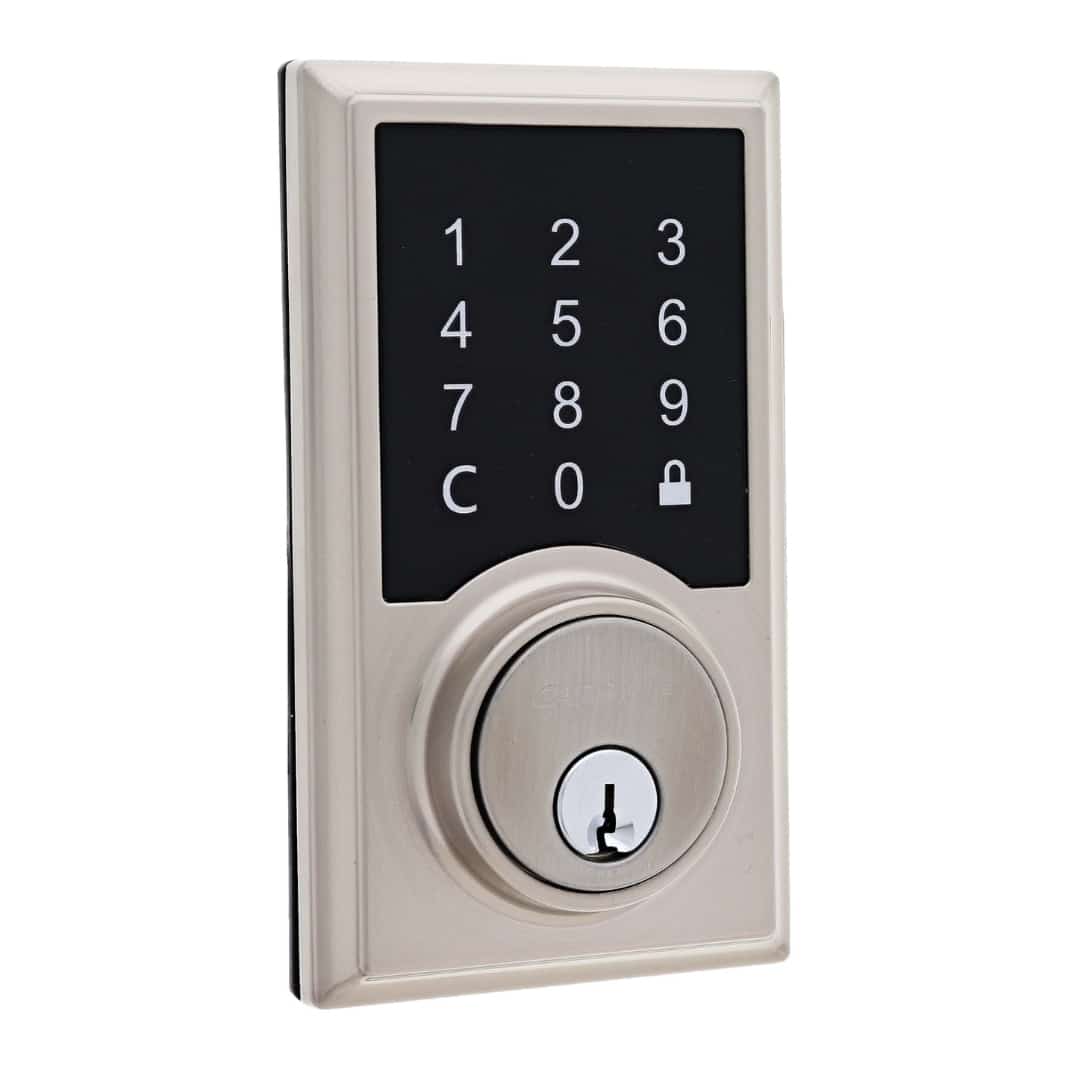

- CDL2-DBSNKIT: Carbine CDL2-DB Electronic Digital Deadbolt, supplied complete with batteries, boxed, elegant Satin Nickel finish.

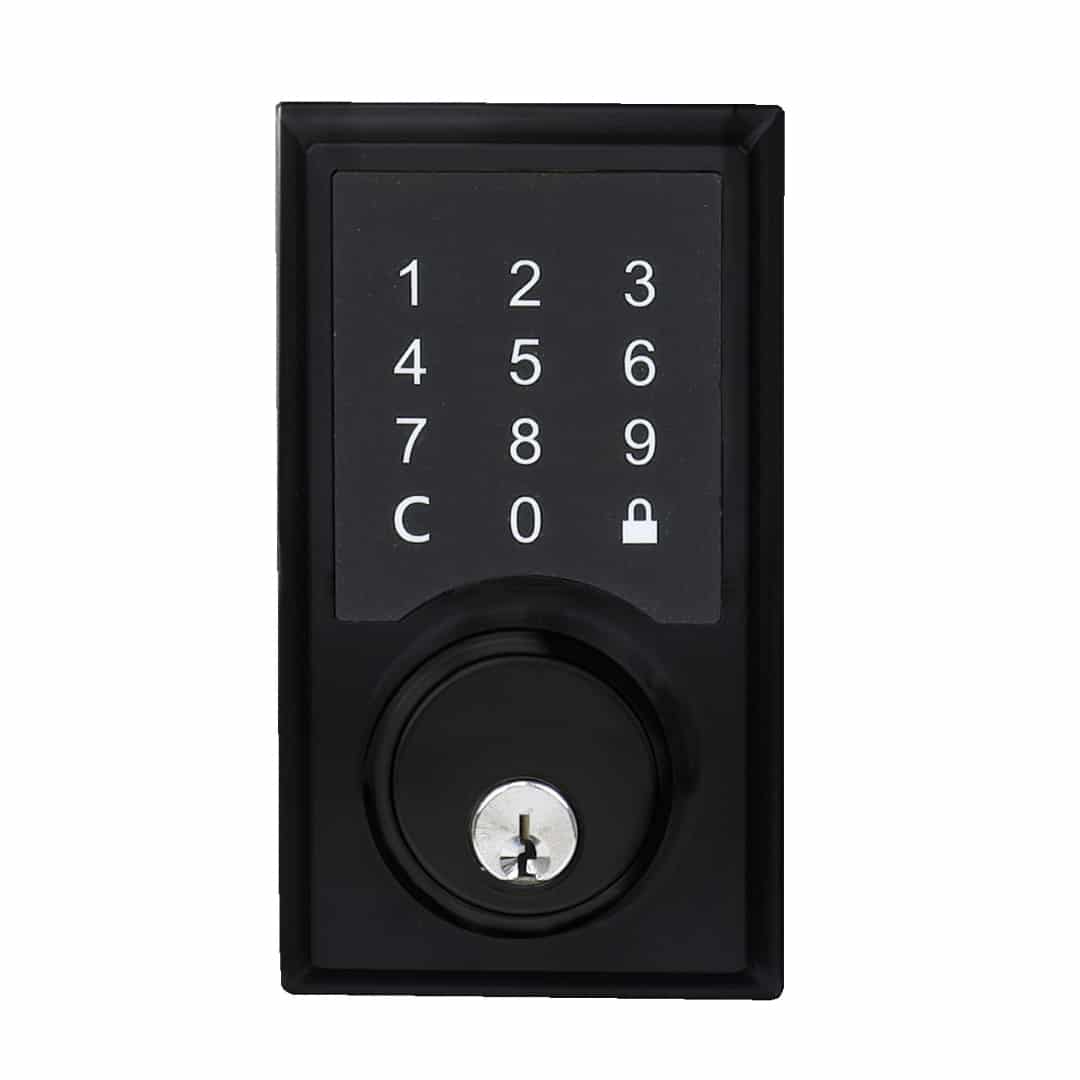

- CDL2-DBMBKIT: Carbine CDL2-DB Electronic Digital Deadbolt, supplied complete with batteries, boxed, slick Matte Black finish.
