Carbine Ascot Classroom Leverset – AS1428 2-Hr Fire Rated Tiebolt Lock (PA8012-L1)
$166.00 Inc. GST
The Carbine Ascot classroom leverset (PA8012-L1) is an AS1428 DDA-compliant, 2-hour fire-rated commercial tiebolt classroom lockset tested to 400,000 cycles.
- Classroom Function: Key locks or unlocks outside lever; inside lever is always free for safe egress.
- AS1428 & 2-Hr Fire Rated: L1 accessible lever (66mm projection) certified up to 2 hours on fire doors.
- 54mm Tiebolt Retrofit: 72mm concealed-fix rose and adjustable 60mm-70mm stainless latch.
- Victorian Dispatch: 24-48hr stocked Victorian warehouse dispatch; free shipping over $149.95 AUD.
🔑 Ordering Multiple Locks? Get Them Keyed Alike:
Have our in-house Victorian locksmiths pin your compatible C4 / LW5 locks to open on one single key (2 matching keys per group). $14.95/lock (1–4) • $12.95/lock (5–9) • $11.45/lock (10–19) • $9.95/lock (20+ bulk).
Add Key Alike Service (SKU: KA) →
Have our in-house Victorian locksmiths pin your compatible C4 / LW5 locks to open on one single key (2 matching keys per group). $14.95/lock (1–4) • $12.95/lock (5–9) • $11.45/lock (10–19) • $9.95/lock (20+ bulk).
Add Key Alike Service (SKU: KA) →
The Carbine Ascot classroom leverset (SKU: PA8012-L1) is a commercial-grade tiebolt classroom lever lockset manufactured by Carbine for schools, training rooms, and offices. Engineered with a 2-hour fire rating, 400,000-cycle springing, and an AS1428.1 DDA-compliant L1 handle, this pa8012-l1 lockset uses the exterior key to lock or unlock the outside handle while preventing occupants from locking the door from inside.
Carbine Ascot Classroom Leverset 54mm Tiebolt & C4 Cylinder Specs
Retrofits standard 54mm cross-bore holes on 35mm-45mm doors with a 72mm concealed-fix rose, adjustable 60mm-70mm stainless latch, and 6-pin PD brass cylinder (LKW9/LW5/C4) ($166.00 AUD).
- 24-48hr Victorian Dispatch: Shipped from our stocked Victorian warehouse (P.O. Box 2101, Oak Park, VIC 3046) with free delivery over $149.95 AUD. Browse commercial leversets or book installation via All Secure Locksmiths.
Frequently Asked Questions
Why use a Classroom function lockset in schools and offices?
Because there is no internal turnsnib, students or visitors cannot lock staff out from inside, yet the internal handle always opens the door for emergency exit.
Additional Information & Specifications
| Weight | 1.2 kg |
|---|---|
| Dimensions | 20 × 16 × 9 cm |
| Brand | Carbine |
| Model Code | PA8012-L1 |
| Locking Function | Classroom (Exterior Key Locks/Unlocks Outside Lever / Inside Always Free) |
| Compliance & Fire Rating | AS1428.1 DDA Accessible L1 Lever / 2-Hour Fire Rated / 400, 000 Cycles |
| Cylinder Profile | 6-Pin PD Brass Cylinder (LKW9 / LW5 / C4 / Restricted Ready) |
| Backset | 60mm – 70mm Adjustable Stainless Latch (72mm Rose / 35-45mm Doors) |
Related products
-
Carbine Jeune SL6000 Privacy Leverset – Bathroom & Bedroom Tiebolt Handle (SL6230 / SL6930) to Pinterest (opens in a new window)
Select options This product has multiple variants. The options may be chosen on the product page Quick ViewCarbine Jeune SL6000 Privacy Leverset – Bathroom & Bedroom Tiebolt Handle (SL6230 / SL6930)
Price range: $65.00 through $69.00 Inc. GST -
Carbine Longreach Mortice Lock – 60mm Backset 4-Hr Fire Rated Body (CSM72) to Pinterest (opens in a new window)
Select options This product has multiple variants. The options may be chosen on the product page Quick View
Carbine Longreach Mortice Lock – 60mm Backset 4-Hr Fire Rated Body (CSM72)
Price range: $124.95 through $149.95 Inc. GST -
Carbine 4000 Sandown Passage Lockset – 2-Hr Fire Rated Non-Locking Knobset (PS4082) to Pinterest (opens in a new window)
Carbine 4000 Sandown Passage Lockset – 2-Hr Fire Rated Non-Locking Knobset (PS4082)
$59.00 Inc. GST -
Carbine CEL2 Digital Deadbolt Bluetooth – Smart App, PIN & C4 Key Lock (CEL2-BT-DB) to Pinterest (opens in a new window)
Select options This product has multiple variants. The options may be chosen on the product page Quick View
Carbine CEL2 Digital Deadbolt Bluetooth – Smart App, PIN & C4 Key Lock (CEL2-BT-DB)
$324.95 Inc. GST
You may also like…
-

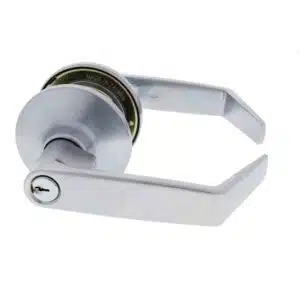

Carbine Rosehill Series Commercial Leverset – 2-Hr Fire Rated Tiebolt (PR6000) – Classroom to Pinterest (opens in a new window)
